Outdoor 3D Advertising LED display IP68 energy saving front access 8000nits

High brightness 6000 to 8000 nits

Aluminum module base

P5. P6,P8 , P10

IP68 Water proof

Energy- saving 300w/sqm average

Production time : 7 to 15das

Mini order : 1 units

Certificates: CE, RoHS, EMC, UL

Warranty: 2 Years and life long support

Payment: T/T, Western Union, PayPal

Send email to us

High brightness
Arc Splicing
Fully Front Access
IP68
3D LED display
Video
Application
Parameter

More Than 8000nits, Ultimate Visual Performance

To display clearly what is on the screen in outdoor scenes, we adopt the new methods of superior PCB design and LED chip to make brightness reach more than 10000nits. With the ultra-high brightness, refresh rate and gray scale, the visual performance of the screen is unexceptionable.

Arc Splicing

The private model series cabinet can be designed as as slanted or curved cabinet ,with angles ranging from -10 ° to + 10 °， It has a fast lock, and we can quickly assemble to a curved screens, four side pillar screens, and other different shapes of screens.

Fully Front Access

MYLED outdoor LED display is front access and with breathable valve which can balance the atmospheric pressures inside and outside of module. The modules, power supply, receiving card, and other components can be removed in the front, which is convenient for the maintainer to maintain the LED screen. Single cabinet is: 28kgs Weight 110mm Thickness

Extremely Protective Methods: IP 68

MYLED outdoor LED display will face more challenges than the indoor ones such as the damage of dust and water. To make the LED screen function safely and stably in outdoor scenes, we adopt the advanced protective methods to withstand heavy rain and strong winds. We also utilize the excellent physical design to reduce the energy cost. IP68 50% Energy Saved

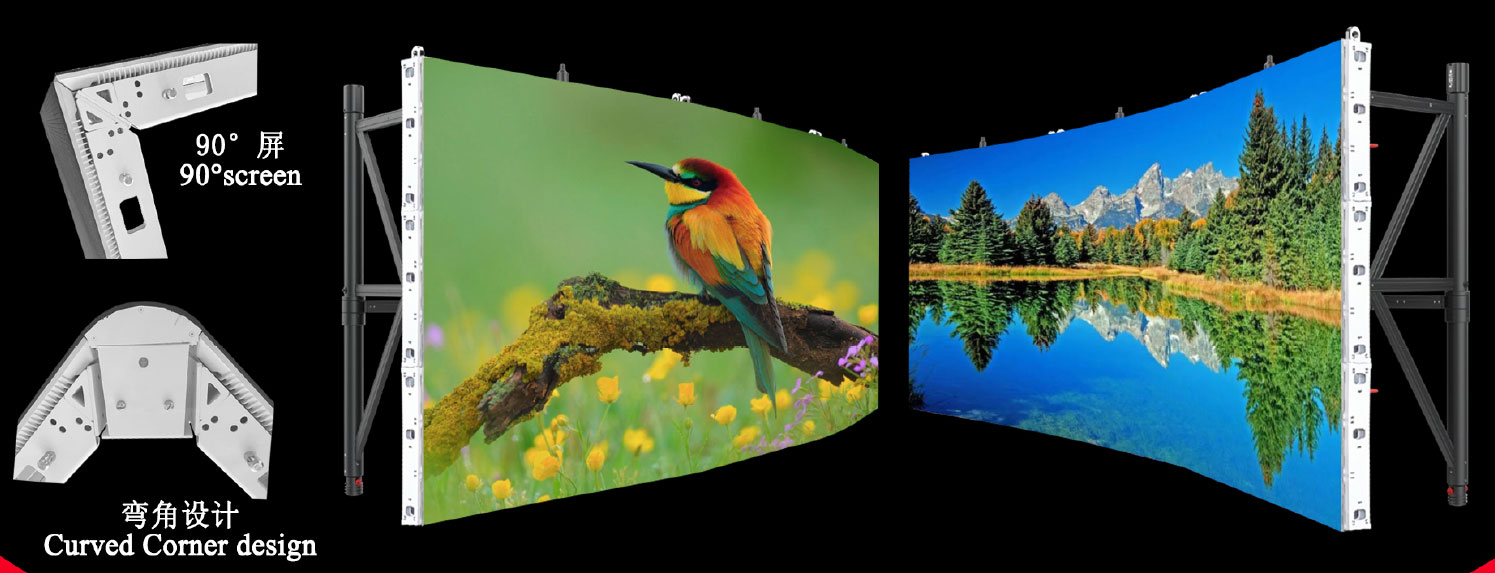

3D visual LED display

MYLED outdoor LED display cabinets can be assembled at seamless 90˚ angles, so in addition to passive visualizations, the screen also can be used for 3D visual effect or a rectangle wall. With friendly design of the shell structure, it brings a strong three-dimensional visual impact.

Video

Application

13767253_1770388869848100_7429114596583924413_o

Products Parameter

Module No.	P4.44	P5.7	P6.67	P8	P10
Pixel pitch	4.44mm	5.7mm	6.67mm	8mm	10mm
Package Mode	SMD1921	SMD2727	SMD2727/3535	SMD3535	SMD3535
Physical density	50625 dots/㎡	30625 dots/㎡	22500 dots/㎡	15625 dots/㎡	10000 dots/㎡
Module size	480mm x 320mm
Pixel Resolution	108*72=7776dots	84*56=4704 dots	72*48 = 3456 dots	60*40=2400dots	48*32=1536dots
Module thickness	20mm
Weight	2.6kg
Max Power	90w	90w	90w	100w	90w
Scan Mode	1/9s	1/7s	1/6s	1/4s	1/2s
Cabinet Size	960960mm71mm
Cabinet resolution	216*216=46656dots	168*168=28224dots	144*144=20736dots	120*120=14400dots	96*96=9216dots
Cabinet module Quantity	6 PCS
Viewing distance	4-100mm	5-100m	6-100m	8-100m	10-100m
Frame frequency	60Hz
Rate refresh	≥3840Hz to 7680Hz
Pixel cofig.	1R1G1B
Brightness	≥6000cd/㎡	≥6000cd/㎡	≥6000cd/㎡	≥6000cd/㎡	≥6500cd/㎡
Power supply Quaty.	2 pcs
Power supply	5V/80A*2 PCS
Average power	265W/㎡
Max power	800W/㎡
Protection Level	IP65
Protective measures	Coating with protective glue
Module working voltage	5V
Operation temp.	-20 to +50℃
Life time	＞ 1000000h
Error rate	＜ 0.001
MBTF	＞5000h
Way of maintenance	Both front and rear access
Best viewing angle	H: 120°，V:120°
Input Voltage	110 to 220V input
Flatness rate	≤0.5mm
Operation system	W7/W10/W11
Control mothod	Synchronous and Asynchronous
