Indoor FHD Advertising Led Display dual access 4K resolution wall mounted meeting room Featured Image
  • Indoor FHD Advertising Led Display dual access 4K resolution wall mounted meeting room
  • Indoor FHD Advertising Led Display dual access 4K resolution wall mounted meeting room
  • Indoor FHD Advertising Led Display dual access 4K resolution wall mounted meeting room

Indoor FHD Advertising Led Display dual access 4K resolution wall mounted meeting room

Right Angle Design

Die casting LED display

1000mm x 250mm, 750mm x 250mm , 500mm x 250mm

Easy Installation

Light Weight & Thin






  • Production time : 7 to 15das
  • Mini order : 1 units
  • Certificates: CE, RoHS, EMC, UL
  • Warranty: 2 Years and life long support
  • Payment: T/T, Western Union, PayPal

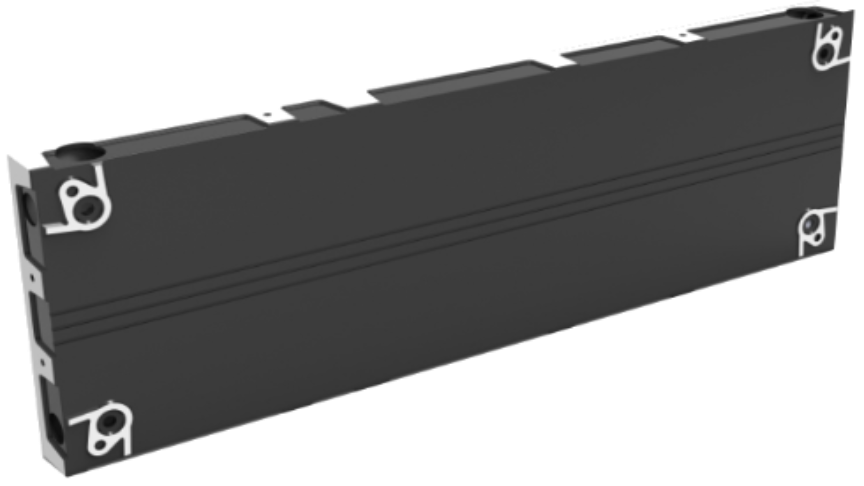

    • Die-Casting Aluminum Design

    MYLED indoor LED display  is made by  die-casting aluminum cabinet and humanized design which is  stronger, more light-weight and precise. This LED panel is highly praised for better user experience. The pixel pitches of this LED screen are SMD P1.9, P2.6, P2.9 and P3.9.

    61111d91e5f05

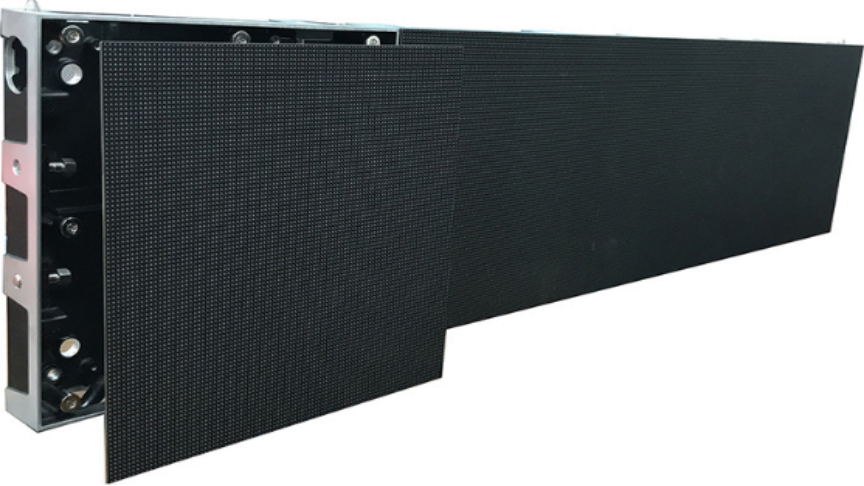

    Front Access Design

    All electrical components: power supply, receiving card, and data cable are easily accessed from the front of the indoor LED display. This design feature allows for direct wall mount installation.

    61111e7e72a4e

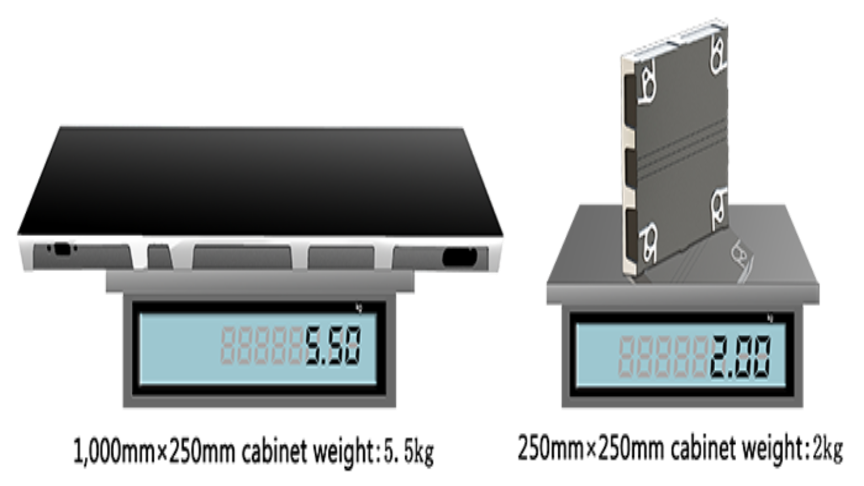

    Ultra-thin and ultra-light features

    MYLED indor LED display cabinet is 42mm (1.65’’) thick The LED display cabinet options weigh 5.5kgs (12.1lbs) or 2kgs (4.4lbs). Cabinet depth: 42mm only. It is one of the thinnest cabinet in the prevailing market, more cost-effective in installation space and steel structure.

    61111e91090b9

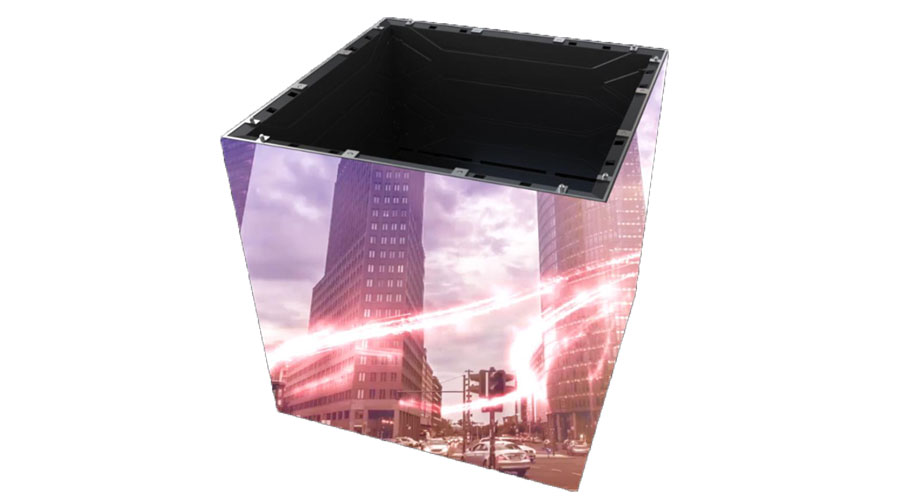

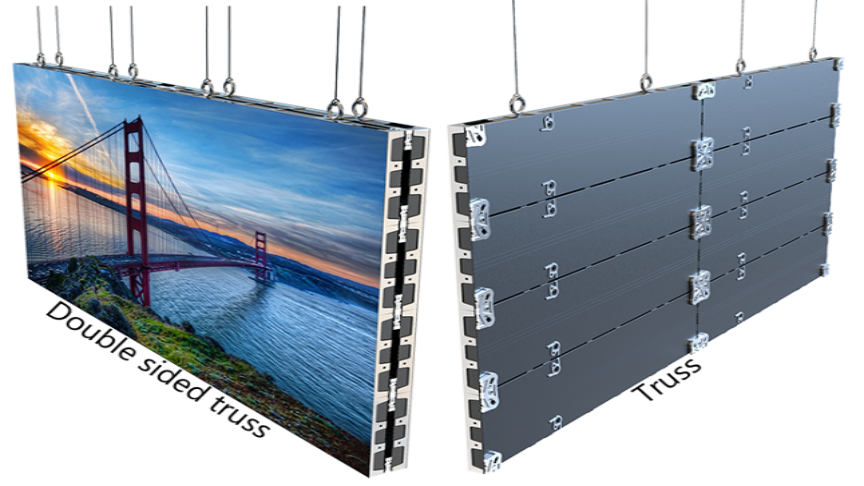

    Flexible Installations

    With the  excellent cabinet structure design, the installation method is flexible, and the screen can fit well into different projects.

    61111eaa3228a
    61111ebed06c2

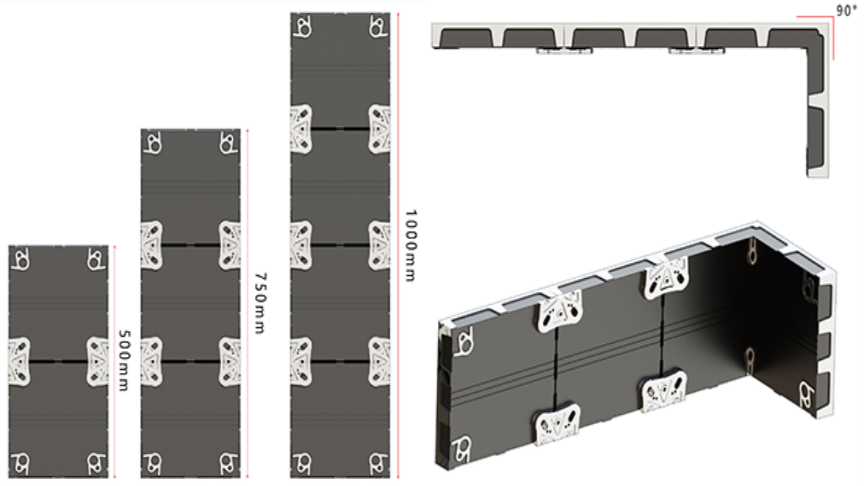

    Various cabinet size

    Wall mounted LED display has various size, 500 x 250mm, 750 x 250mm, 1000 x 250mm, 500 x 500mm, 750 x 500mm and 1000 x 500mm . All of them can be spliced together to a seamless LED video wall .

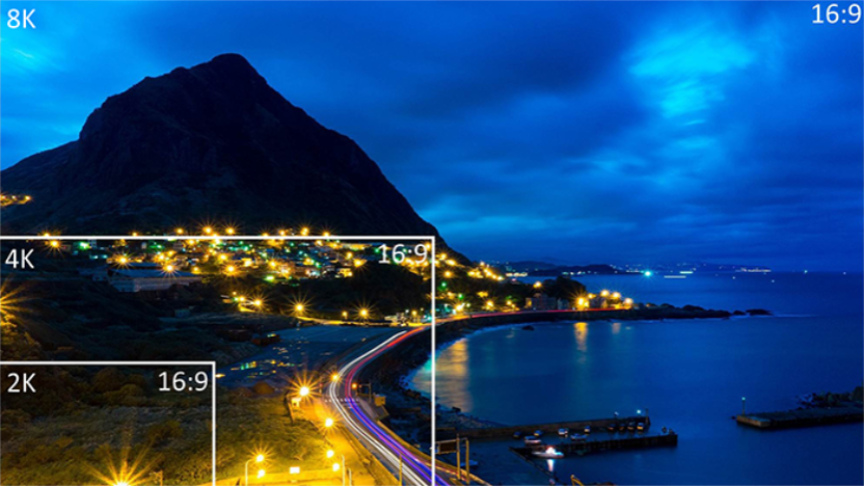

    FHD Video performance

    Gold aspect ratio: 4:3/16:9 Customized resolution: 1080p, 2K, 4K, 8K, etc. Wide Viewing Angle: up to 160° They’re achieved by an industry setting display refresh rate of 3,840Hz combined with a Grey Scale performance that reaches 24bits luminance intensity.

    611487135f707

    Video

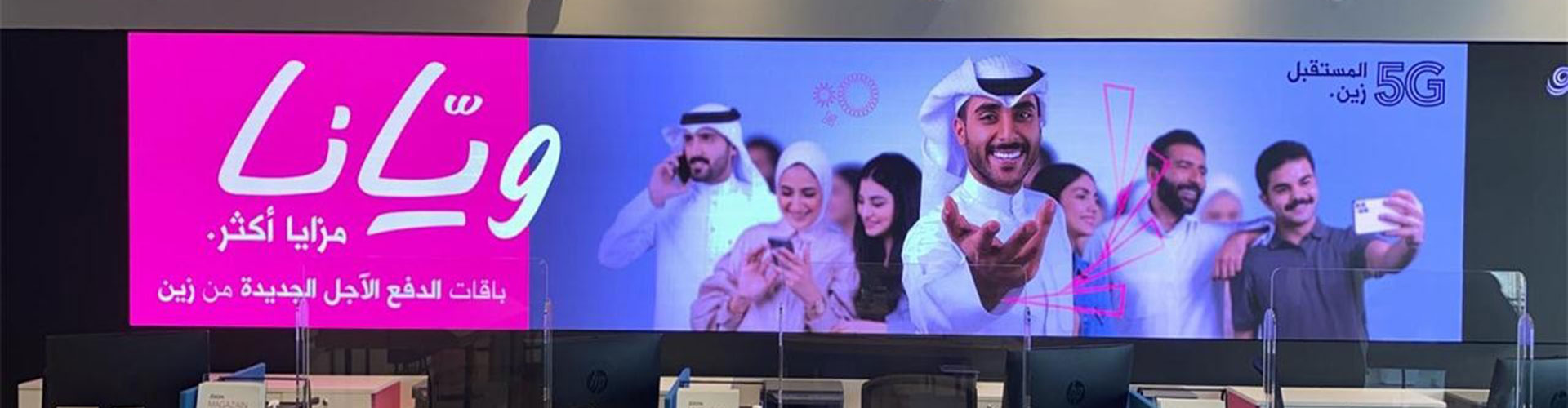

    Project

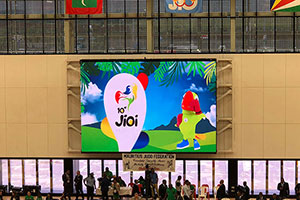

    project-1

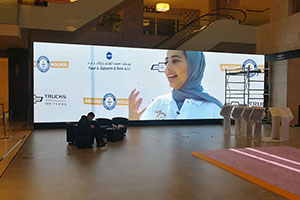

    Project-2

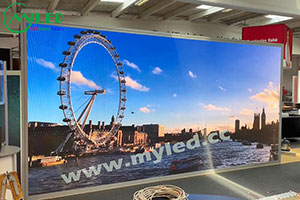

    project-3

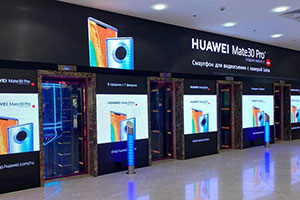

    project-4

    Specification

    Item
    		 P1.9 P2.6 P2.9 P3.9
    Pixel Pitch 1.953mm 2.604mm 2.976mm 3.906mm
    LED Type SMD1515/ SMD1415(outdoor) SMD1515 / SMD1415(outdoor) SMD2020 / SMD1415(outdoor)  SMD2020 / SMD1921(outdoor)
    Module Resolution 128dots x128dots 96dots x 96dots 84dots x 84dots 64dots x 64dots
    Driving Mode 1/32scan 1/32scan 1/28scan 1/16scan
    Module Pixels 1,6384dots 9,216dots 7,056dots 4,096dots
    Module Size 250mm x 250mm 250mm x 250mm 250mm x 250mm 250mm x 250mm
    Cabinet Size 1000mm x 250mm or 250mm x 250mm 750mm x 250mm or 250mm x 250mm 1000mm x 250mm or 250mm x 250mm 1000mm x 250mm or 250mm x 250mm
    Cabinet Resolution 512dotsx 128dots or 128dotsx 128dots 288dotsx 96dots or 96dotsx 96dots 336dotsx 84dots or 84dotsx 84dots 256dotsx 64dots or 64dotsx 64dots
    Pixel Density 262,144dots/㎡ 147,456dots/㎡ 112,896dots/㎡ 65,536dots/㎡
    Minimum Viewing Distance ≥1.9 m ≥2.6 m ≥2.9 m ≥3.9m
    Brightness 800nits～1,200nits / 2,000nits 800nits～1,200nits / 2,000nits 800nits～1,200nits / 2,000nits 800nits～1,200nits / 2,000nits
    IP Grade IP43 IP43 IP43 IP43
    Refresh Rate 1,920Hz～3,840Hz 1,920Hz～3,840Hz 1,920Hz～3,840Hz 1,920Hz～3,840Hz
    Gray Scale 13bits～24bits 13bits～24bits 13bits～24bits 13bits～24bits
    Viewing Angle H:160° / V:160° H:160° / V:160° H:160° / V:160° H:160° / V:160°
    Maximum Power Consumption 210W/ ㎡ 210W/ ㎡ 210W/ ㎡ 210W/ ㎡
    Average Power Consumption 60W/ ㎡ 60W/ ㎡ 60W/ ㎡ 60W/ ㎡
    Screen Lifespan ≥100,000 hours ≥100,000 hours ≥100,000 hours ≥100,000 hours
    Input Voltage AC110V - AC220V @ 50Hz/60Hz AC110V - AC220V @ 50Hz/60Hz AC110V - AC220V @ 50Hz/60Hz AC110V - AC220V @ 50Hz/60Hz
    Operating Temperature ﹣20℃～65℃ ﹣20℃～65℃ ﹣20℃～65℃ ﹣20℃～65℃
    Operating Humidity 10%～90% 10%～90% 10%～90% 10%～90%
    Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
    Cabinet Weight 5.5kg/panel or 2kg/panel 5.5kg/panel or 2kg/panel 5.5kg/panel or 2kg/panel 5.5kg/panel or 2kg/panel
    Operating System Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
    Signal Source Compatibility DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
