Fixed permanent installation advertising LED display billboard video wall Front/rear access 8000nits

  • Specially designed for branding & digital advertising
  • Built to withstand severe weather conditions
  • Excellent brightness & contrast levels
  • P3.1, P3.9, P4, P4.8, P5.9, P6.6, P8, P10
  • Easy front or rear service access for options
  • Advanced monitoring & reporting system – Optional


  • Production time : 7 to 15das
  • Mini order : 1 units
  • Certificates: CE, RoHS, EMC, UL
  • Warranty: 2 Years and life long support
  • Payment: T/T, Western Union, PayPal
  • High Durability and Stability

    MYLED fixed advertising series LED video display was developed specifically for commercial billboards and outdoor digital advertising markets.

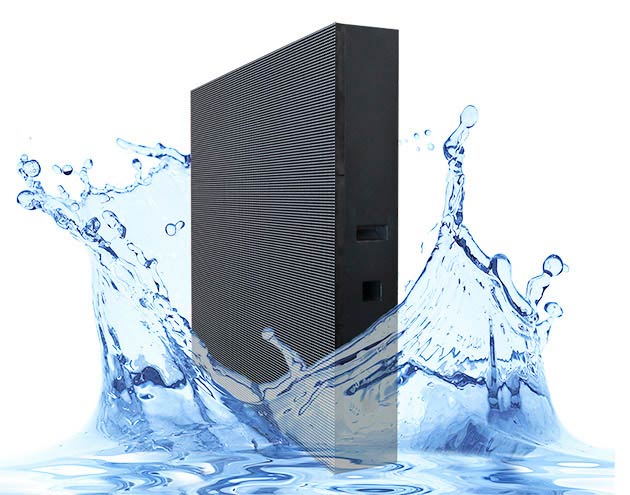

    Designed for fixed outdoor installations, Fixed LED video panels are robust and durable, high qualified to withstand any harsh environment factors such as constant vibrations, direct UV rays, varying temperatures and severe weather conditions. The Fixed LED display systems are suitable for 24/7 operation.

    FT Series1
    FT Series2

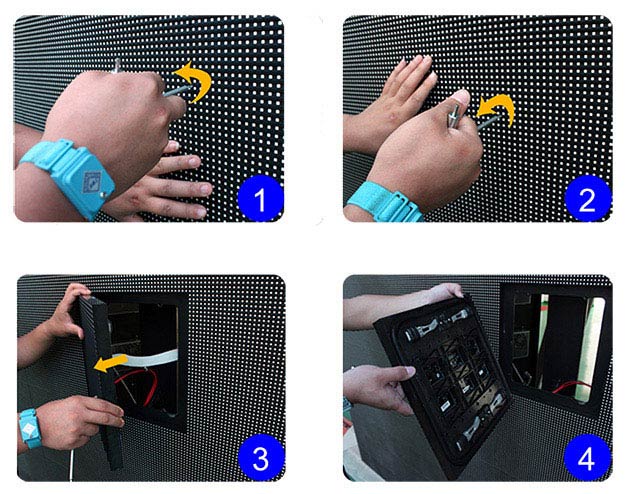

    Front / Rear Access

    MYLED Fixed  LED video display supports front or rear service access for specific installation. The fully front installation and maintenance panel design easier your installation procedures and much convenient to maintain. It is the perfect choice for against the wall installation or any other environment where requires no rear maintenance space.

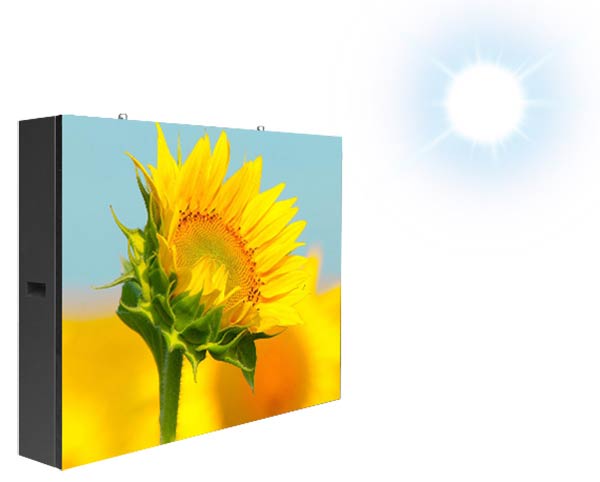

    High brightness 8000nits

    MYLED fixed LED video display equipped with high brightness LEDs (DIP or SMD for options) to make sure the screen displaying vivid and clear image even in direct sunlight. The wide viewing angle catches more eyes on the screen and deliver brilliant visual enjoyment to the passing-bys, greatly maximize the commercial value.

    FT Series3
    FT Series4

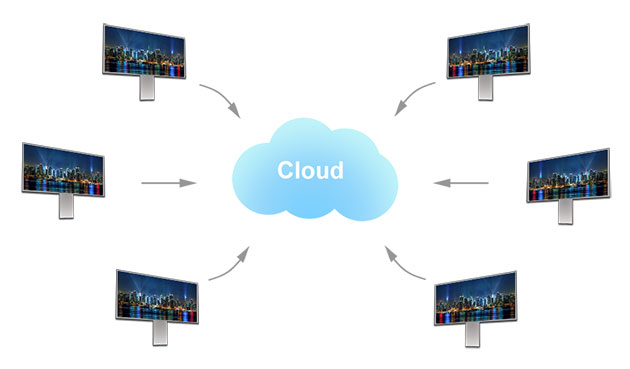

    Remote control and monitor

    The advanced reporting system allows clients to remotely monitor the performance of the entire LED display and individual panels live from any destination. It detects any inconsistencies and failures and feedback the results in real time when they occur.

    Video

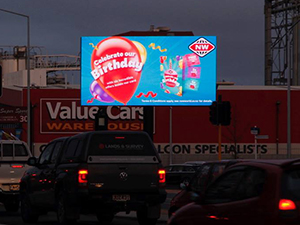

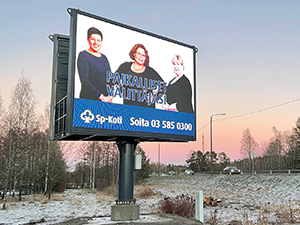

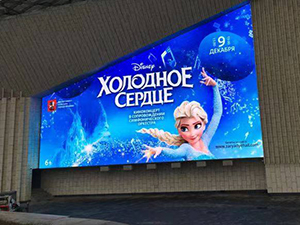

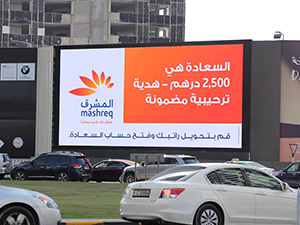

    Projects

    300x225-4
    300x225-3
    300x225-2
    300x225-1

    Specification

    Specification/Item Outdoor Dual Access LED display specification
    P3.91 P4.81 P4 P5.33 P6.67 P8 P10
    Module Pixel  3.91mm 4.81mm 4mm 5.33mm 6.67mm 8mm 10mm
    Module size(L*H) 250mmX250mm 250mmX250mm 320mmX320mm 320mmX320mm 320mmX320mm 320mmX320mm 320mmX320mm
    Module resolution(L*H) 64*64 52*52 80*80 60*60 48*48 40*40 32*32
    Pixel density 65536dot/m2 43264dot/m2 62500dot/m2 35200dot/m2 22477dot/m2 15625dot/m2 10000dot/m2
    Pixel layout SMD1921 SMD1921 SMD1921 SMD1921 SMD2727 SMD3535 SMD3535
    Driving way 1/8scan 1/6-7scan 1/10scan 1/7-8scan 1/6scan 1/5scan 1/2scan
    Module Current 14.5A 14.5A 15A 14A 13A 13A 15A
    Module weight 1.5kg 1.5kg 2kg 2kg 2.1kg 2kg 2kg
    Hub card hub75 hub75 hub75 hub75 hub75 hub75 hub75
    Cabinet Cabinet size(L*H) 1000*1000*120 960*960*135
    Cabinet resolution(L*H) 256*256 208*208 240*240 180*180 144*144 120*120 96*96
    Brightness 6500cd/m2 6000cd/m2 6000cd/m2 5500cd/m2 6000cd/m2 6000cd/m2 6800cd/m2
    Viewing angle 120°/ 120° 120°/ 120°
    Grey color 13-16bit 13-16bit
    Temperature color 6500-12000K 6500-12000K
    Refresh rate 1920HZ/3840HZ 1920HZ/3840HZ
    Max Power  900W/m2 1000W/m2 800W/m2 800W/m2 800W/m2 700W/m2 800W/m2
    Average power 280W/m2 300W/m2 250W/m2 250W/m2 250W/m2 200W/m2 250W/m2
    Input power AC90-240V AC90-240V
    Output power DC5V DC5V
    Working temperature -30~50℃ -30~50℃
    Working humidity 10%~90% 10%~90%
    Cabinet area 1㎡ 0.9216㎡
    Cabinet weight  45KG 28KG
    Cabinet material Alumimum  / Die casting / Steel
    IP rate IP65/IP54 IP65/IP54
    Way of maintaining Real and Front access Real and Front access
